tft lcd display shield

Nextion 2.4" 320*240 Enhanced Display Serial HMI LCD Module Screen with Resistive Touch Panel

NX3224K024
minimum order
1 piece
Quantity:
$15.00 - $17.00 / piece
Contact Now
add to cart
  • Type:TFT
  • Display Size:2.4
  • Supplier Type:manufacturer
  • Place of Origin:Guangdong, China
  • Brand Name:Nextion
  • Size:2.4 inch
  • Resolution:320*240/240*320
  • Brightness:180 nit
  • Backlight:LED
  • Touch type:Resistive
Specification

Size
2.4
resolution
320*240/240*320

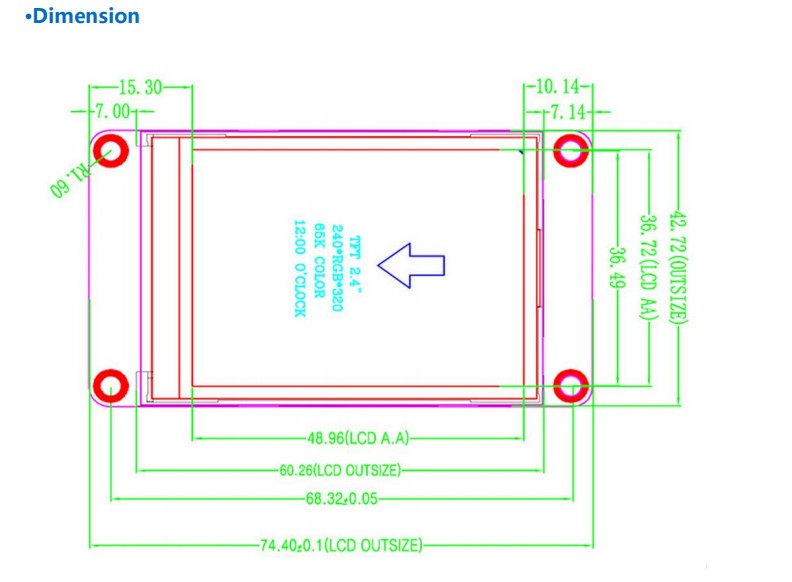

Outline size
74.4(L)×42.72(W)×5.8(H)
Active Area
60.26mm(L)×42.72mm
Visual Area
48.96mm(L)×36.72mm(W)
Touch type
Resistive
Touches
> 1 million
Brightness
180 nit
Backlight
LED
Backlight lifetime
>30,000 hours
(Average)
weight
25.8g
RTC
Support built-in RTC (Battery type: CR1220)
