7 inch lcd module

7 inch 800*480 Enhanced Display HMI LCD Module Screen with Resistive Touch Panel

NX8048K070
minimum order
1 piece
Supply Ability
20000piece / Month
Country of Origin
Shen Zhen
Quantity:
USD61.00 - USD67.00 / piece
Contact Now
add to cart
  • Display Size:7"
  • Place of Origin:china
  • Model Number:NX8048K070
  • Brand Name:Nextion

7 inch 800*480 Enhanced Display HMI LCD Module Screen with Resistive Touch Panel

Product Description
Size7
resolution800*480
Outline size
181(L)×108(W)×9.3(H)
Active area
164.90mm(L)×100.00mm(W)
Visual Area
154.08mm(L)×85.92mm(W)
Touch typeResistive
Touches> 1 million
Brightness350 nit
I/O

8 extended IO

I00-I07 support input, output and component binding event

RTCSupport built-in RTC (Battery type: CR1220)

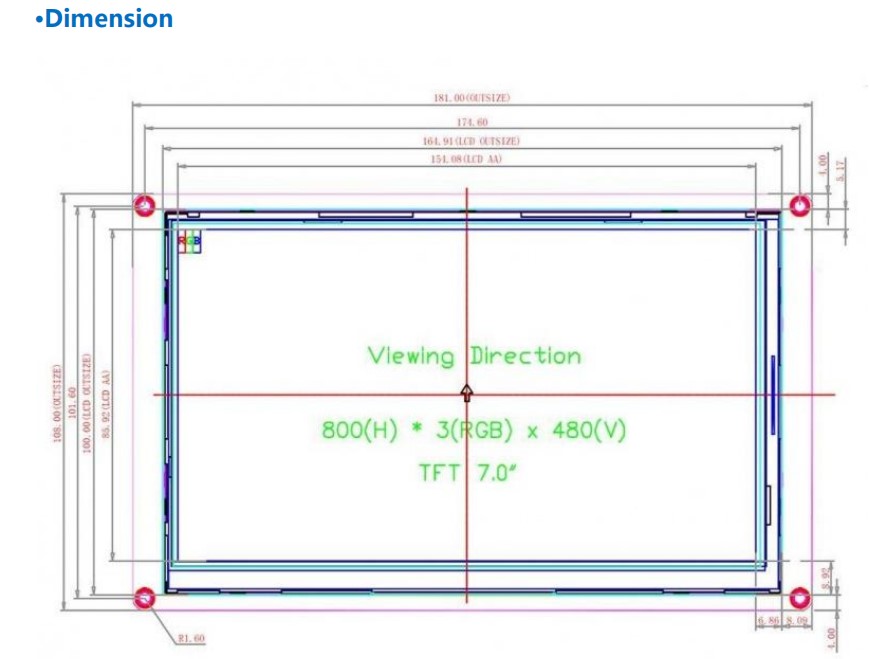

Product drawing



More details about Nextion

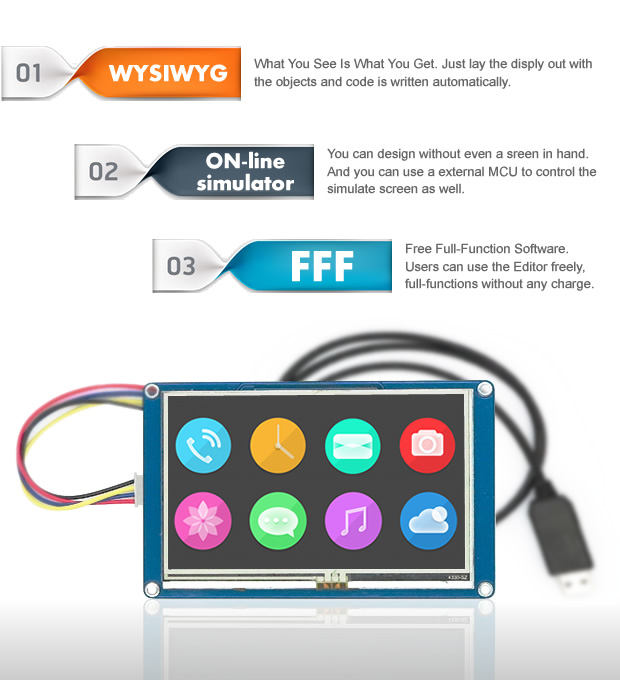

Nextion is a Human Machine Interface (HMI) solution combining an onboard processor and memory touch display with Nextion Editor software for HMI GUI project development. Using the NEXTION Editor software, you can quickly develop the HMI GUI by drag-and-drop components (graphics, text, button, slider etc.) and ASCII text based instructions for coding how components interact at display side. Nextion HMI display connects to peripheral MCU via TTL Serial (5V, TX, RX ,GND) to provide event notifications that peripheral MCU can act on, the peripheral MCU can easily update progress and status back to Nextion display utilizing simple ASCII text based instructions.

The Intelligent Series products have more powerful hardware in terms of MCU, Flash storage and SRAM compared with Basic Series and Enhanced Series. What's more and new? The audio, video and animation play functions enriches user's project HMI interaction. The Intelligent Series supports advanced software features and functions such as transparent component, page loading effect, component Move and Drag .etc.

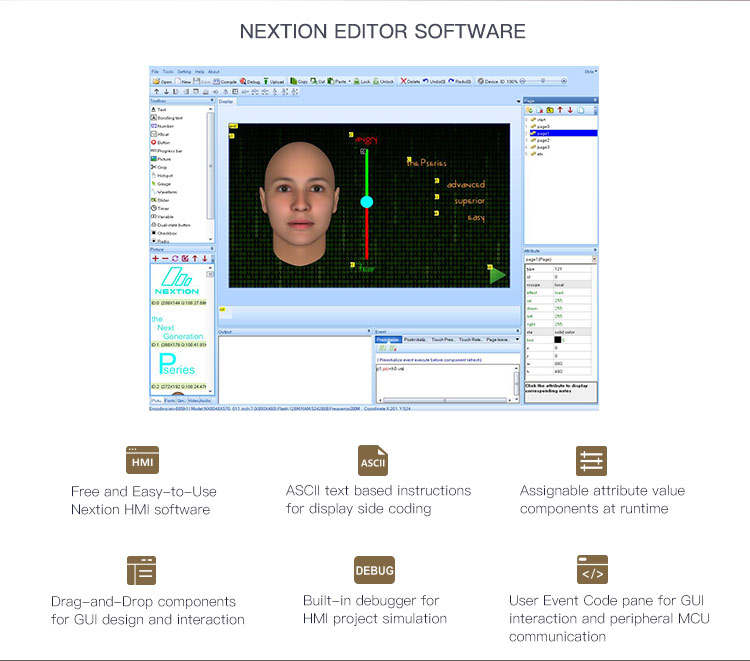

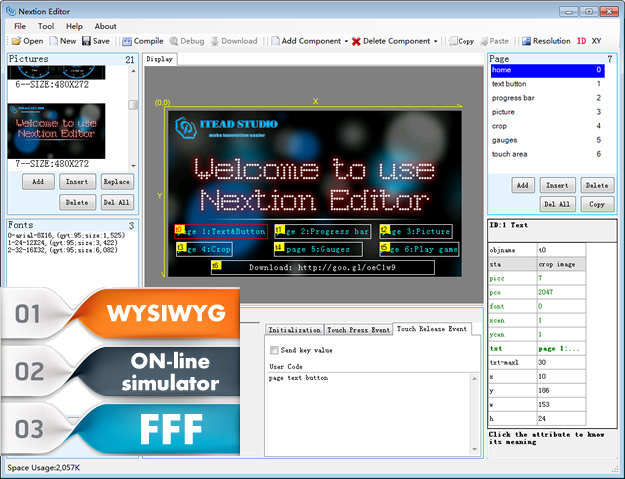

You can develop the HMI GUI project via the free latest Nextion Editor software ver 0.58 or above, the easy Drag-and-Drop components and simple ASCII text based instructions will dramatically reduce your HMI project development workloads.

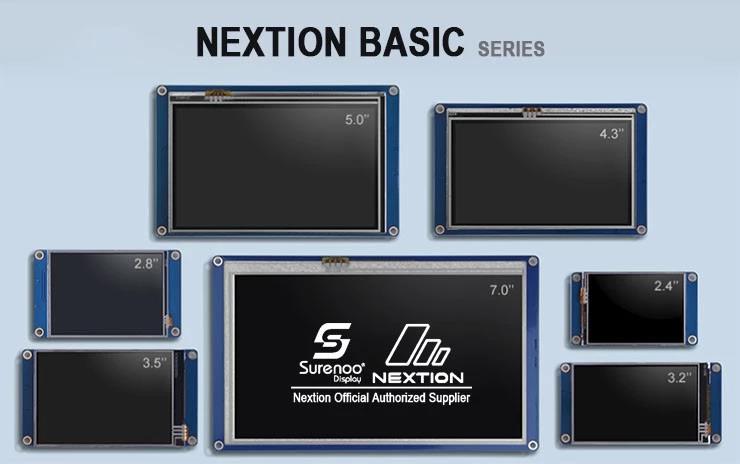

Nextion Basic series

Nextion Basic.jpg

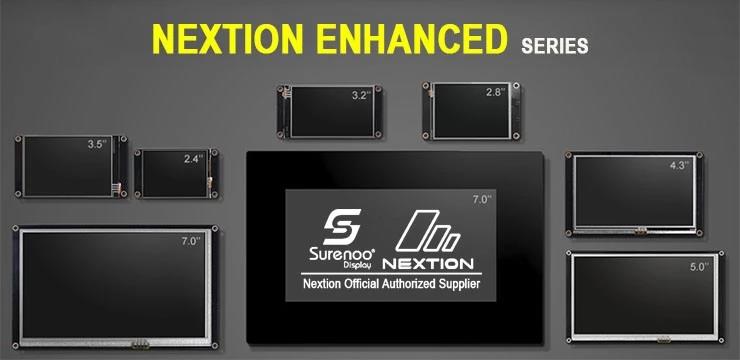

Nextion Enhanced series

Nextion Enhanced.jpg

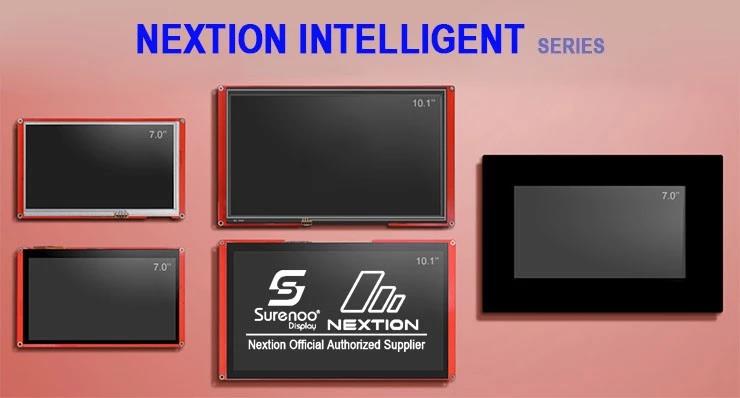

Nextion Intelligent series

Nextion Intelligent.jpg
