Nextion 2.4" 320*240 basic Serial HMI LCD Module Screen with Resistive Touch Panel



Product Description







Size	2.4
resolution	320*240/240*320
Outline size	74.4(L)×42.72(W)×5.8(H)
Active area	60.26mm(L)×42.72mm
Visual Area	48.96mm(L)×36.72mm(W)
Touch type	Resistive
Touches	> 1 million
Brightness	180 nit
Backlight	LED
Backlight lifetime (Average)	>30,000 hours
weight	25.8g
RTC	Support built-in RTC (Battery type: CR1220)

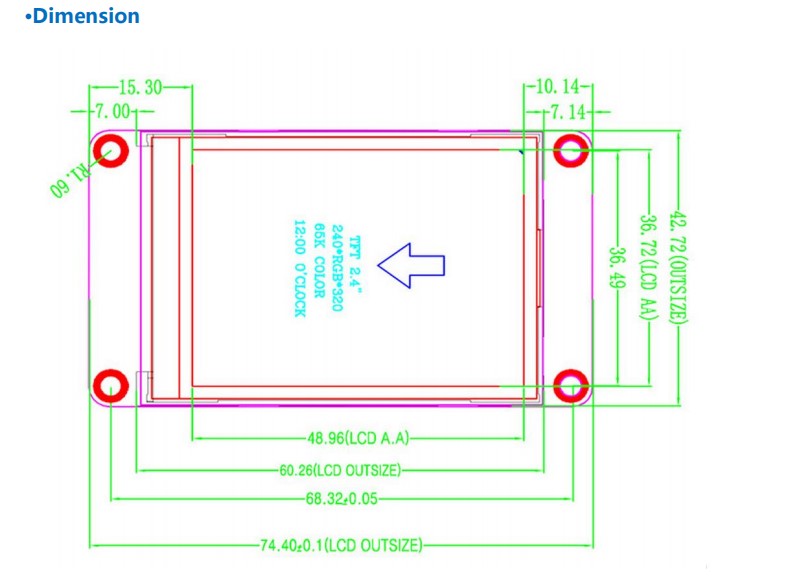

Product drawing











More details about Nextion:

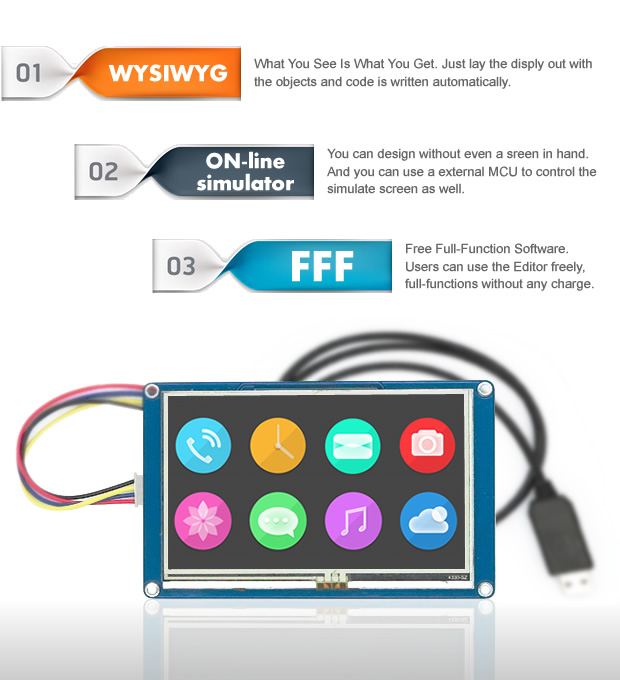

Nextion is a Human Machine Interface (HMI) solution combining an onboard processor and memory touch display with Nextion Editor software for HMI GUI project development. Using the NEXTION Editor software, you can quickly develop the HMI GUI by drag-and-drop components (graphics, text, button, slider etc.) and ASCII text based instructions for coding how components interact at display side. Nextion HMI display connects to peripheral MCU via TTL Serial (5V, TX, RX ,GND) to provide event notifications that peripheral MCU can act on, the peripheral MCU can easily update progress and status back to Nextion display utilizing simple ASCII text based instructions.





The Intelligent Series products have more powerful hardware in terms of MCU, Flash storage and SRAM compared with Basic Series and Enhanced Series. What's more and new? The audio, video and animation play functions enriches user's project HMI interaction. The Intelligent Series supports advanced software features and functions such as transparent component, page loading effect, component Move and Drag .etc.

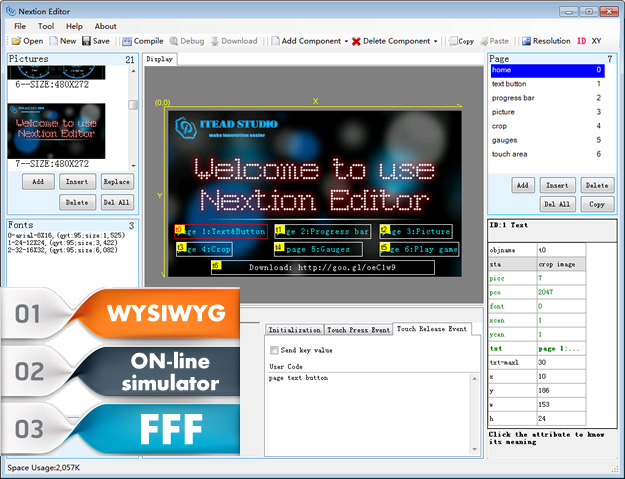

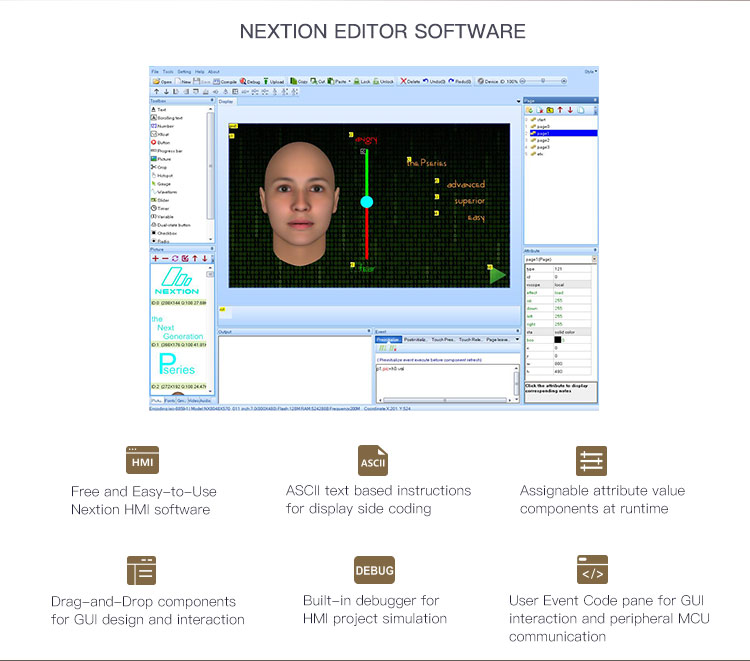

You can develop the HMI GUI project via the free latest Nextion Editor software ver 0.58 or above, the easy Drag-and-Drop components and simple ASCII text based instructions will dramatically reduce your HMI project development workloads.

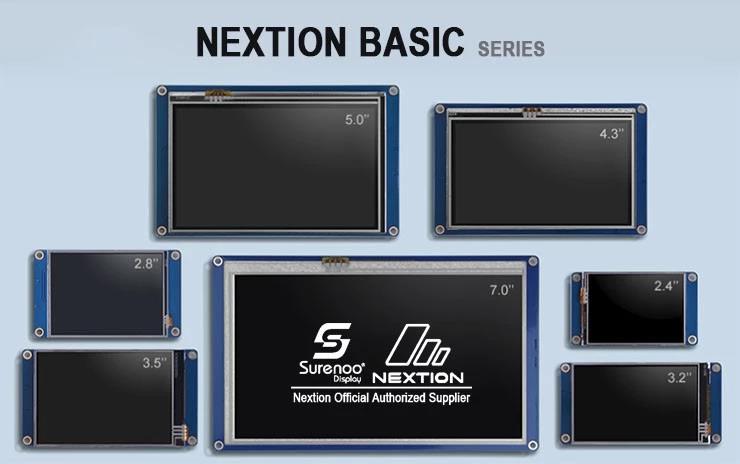

Nextion Basic series

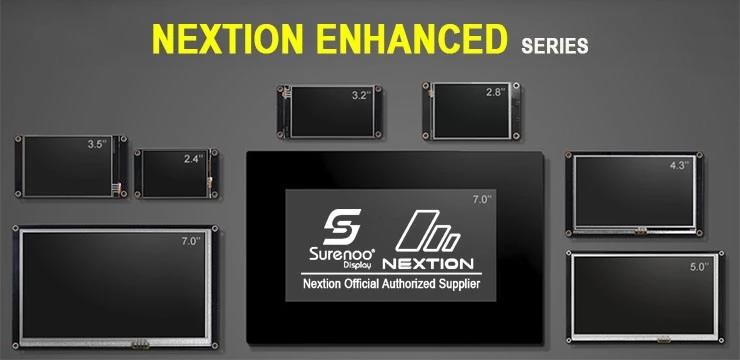

Nextion Enhanced series

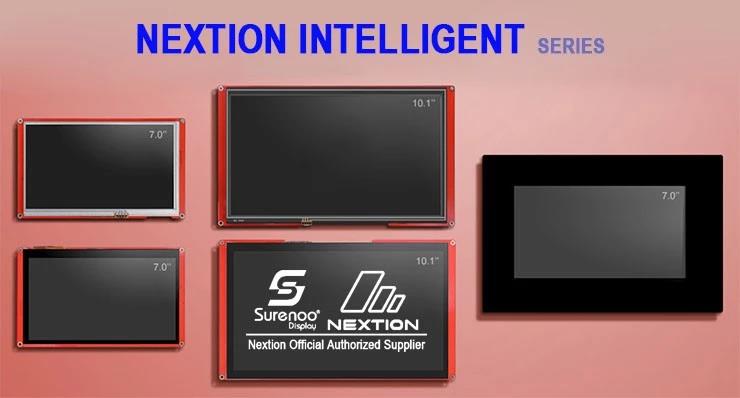

Nextion Intelligent series

* AUO/CPT/CMO//Innolux/TianMafive brands tft lcd module , you can get the most competitive price for real products;

2.Application of our lcd panles:

Our products are widely used for banking machines, communication tools, household appliances, automobile instruments, mobile phone, video door phone, E-book, stock mobile, MP5, tablet PC, GPS navigator and so on.

3.Quality to be ensure:

All the panels are 100% original and brand new, no fake panels exists, so from NEW Displayyou can enjoy the real panels directly from original factory;

Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the packages have labels and serial number, you can check them;

4.Quickly delivery:

We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly and to avoid Value Added Tax in china for you, so from NEW Displayyou can get more convenient delivery;

5.long-term partner:

* Products are sold to more than 20 countries, so from NEW Display you can get more stable supplying promise;

6. Super After-Sale service:

NEW Display will support original factory technology service before and after sale for all your project, you can send all the fack panel back and here return you a new panel;

7.the best TFT LCD solution:

*more tft lcd model detail information including size, resolution, brightness, operating temperature or life time etc in our web site or alibaba website: http://www.tft-lcd-panels.com/

To get the latest prices, pls feel free to contact us.
