lcd tft display

2.4 inch 320x240 350nits full view angle ips lcd panel ND024CN8935803

ND024CN8935803
minimum order
1 piece
Country of Origin
shenzhen
Quantity:
$5.00 - $7.00 / piece
Contact Now
add to cart

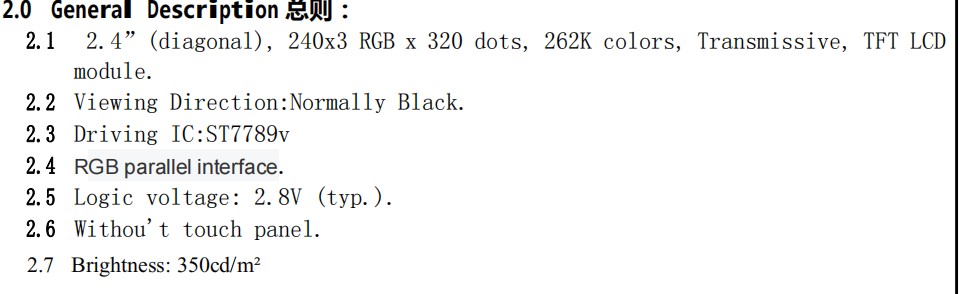

  • Type:TFT, TFT
  • Display Size:2.4"
  • Supplier Type:manufacture
  • Place of Origin:Guangdong, China
  • Brand Name:New display
  • size:2.4"
  • Resolution:320*240
  • module size:42.72(W)x60.26(L)x2.15(T)
  • active area:36.72(W)* 48.96(H)
  • Brightness:350nits
  • Pixel Configuration:RGB-Stripe
  • Backlight:LED
  • Driver IC:ST7789V
  • Warranty:one year

2.4 inch 320x240 350nits full view angle ips lcd panel ND024CN8935803

























































LCD size



2.4"



Resolution



320*240



Color Pixel Arrangement



RGB vertical stripe



Display Mode



Normally black



module size



42.72(W)x60.26(L)x2.15(T)



active area



42.72(W)x60.26(L)x2.15(T)



Response Time (Tr+Tf)



15ms



Brightness



350nits



contrast ratio



400:1



Weight



40



Panel power consumption



TBD



Surface Treatment



Hard Coating
